AUTOOL DM500 Car Multimeter Circuit Digital Diagnostic Tool Pocket Size Clamp

Regular price ¥31.99 Sale

AUTOOL DM500 Autoranging Digital Clamp Meter same as VC903 DM500 is a Auto-ranging digital multimeter using double-integral style  A/D transform as the core. Can be used to measures Temperature,...

In stock

IMOJ.com

¥31.99
IMOJ.com

Product description

AUTOOL DM500 Autoranging Digital Clamp Meter same as VC903

DM500 is a Auto-ranging digital multimeter using double-integral style  A/D transform as the core.

Can be used to measures Temperature, AC/DC Voltage, AC/DC Current, Resistance, Capacitance,Diode and Continuity testing, Frequency and  duty cycle.

Note:

Don't include two 1.5V batteries




Features:


Auto/manual ranges


True RMS measurement


550V protection in resistance and capacitance ranges


Large LCD display,MAX display 6000 counts


Sample rate: 3 times per second


backlight


Data hold


Polarity identification


Low voltage indication


1200A high current measurement,low current measurement


Auto power off


Main measurements:AC/DC Voltage, AC/DC Current, Resistance,Capacitance,
Diode and Continuity Testing,Temperature, Frequency and duty cycle.


* Frequency:1Hz to 10MHz


* Temperature:-20℃ to 1000℃(-4℉ to 1832℉)


* Capacitance :10pF to 6000uF


* AC volts: 0.1mV to 750V


* DC volts:0.1mV to 1000V


* AC current: 0.1uA to 1200A


* DC current:0.1uA to 1200A


* Resistance:0.1Ω to 60MΩ


* Duty cycle:1% to 99%
Specifications:


(1)frequency:5/50/500/5k/50k/500k/5M/10M (±0.1+3)


(2)Temperature:﹤400℃ ±(1.0%+5),≥400℃±(1.5%+15)


﹤752℉ ±(1.0%+5),≥752℉±(1.5%+15)


(3)capacitance:10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5),1000uF/10000uF(±5.0%+5)


(4)DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)


(5)AC volt:600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)


(6)ACA/DCA:600uA/6000uA(±0.8%+10),60A/600A/1200A(±2%+30)


(7)Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)


(8)Duty cycle:1% to 99%(±1%)


(9) Measurement mode: Double-integral style A/D transform


(10)Over range indication: OL


(11) Working environment: 0~40℃, relative humidity < 80%


(12) Supply power: 3V (1.5V AA batteries * 2 Pcs)


(13) Dimension: 2807045mm


(14) Weight: 510g


6b6edb72-4911-36e5-9234-f9a1dc5e0a0b


3f69b97b-85b8-96c9-9aa7-995f098a3f2aa70d5b1c-e600-c8b5-cc0e-2bbeeaebd995db7a4b65-5960-cbfc-c603-217002e7f084a51d92aa-7167-8676-81ff-669a08061bd7


IMG_6481
IMG_6570

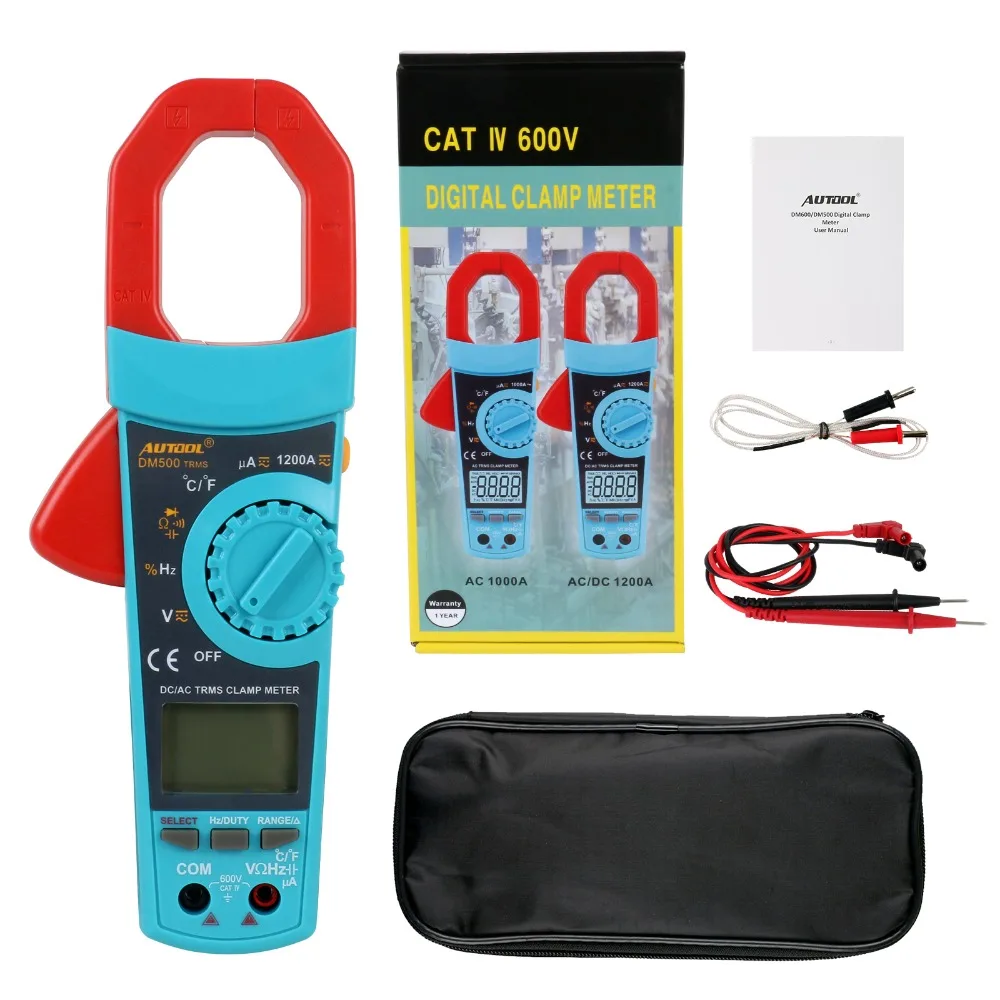

Package List:


1 x  DM500 multimeter


1 x  a pair of test leads


1 x  User Manual


1 x  bag




805aa9da-7720-84d1-86e5-3bfffdc0293f


_01
_02
