AUTOOL Car ELM327 OBDII V1.5 Bluetooth WIFI ELM 327 OBD 2 Auto Scan Diagnostic Reader OBD2 Scanner for Android iOS PIC18F25K80

Regular price ¥14.00 Sale

Notice: Please send your car brand model messages to our services before place order. Automobile diagnostic instrument By AUTOOL Top reasons to buy OBOX: 1. 100% original, and...

In stock

IMOJ.com

¥12.00
IMOJ.com


Product Related


Product description


Notice: Please send your car brand model messages to our services before place order.


Automobile diagnostic instrument


By AUTOOL




c8a6c4c0-32d8-43bf-94fb-4ccf25822907

Top reasons to buy OBOX:

1. 100% original, and firmware version is V1.5 support all standard OBD2 protocols.

2. Wifi version Support IOS /Anroid/Windows system.

3. Can do most of OBDII gasoline and diesel 12V cars,but can't support all OBDII cars.

4. The power button is only used for reset the device , not have the function of turn on or turn off.

5. When stop communication, wait half an hour, auto sleep

6. Small size, compact structure, more stable connection and durable


7. Provide multi-language optional.

8. The adapter uses the fastest and most reliable chips PIC18F25K80

9. Bluetooth 5~10 meter, Wireless (wifi version) 10~20 meter

10.The OBOX bluetooth Only support android system up than 4.3 version , and bluetooth 3.0 or over version phone.

Support car models:


Support most OBD2 cars. Pleasae self-check with below rules.

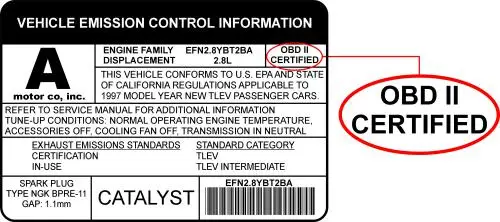

OBDII Certified
For American Cars: Works on obd2 car from 1996 to now


For European cars: Works on obd2 car from 2001 to now


For Japanese Cars: Works on obd2 car from 2005 to now


For other Asian Cars: Works on obd2 car from 2009 to now




Vehicle Coverage:



1. America Car List: (include Brazil)


Need standard obd2 , and release from 1996 years to now

Fit for Chrysler ,Fit for Ford ,Fit for GM ,Fit for Jeep


2. Europe Car List:


Need standard obd2 , and release from 2001 years to now

Fit for Alfa Romeo ,Fit for SAAB  ,Fit for Acura  ,Fit for Opel, Fit for Audi ,Fit for Seat  ,Fit for Peugeot ,Fit for Renault

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu  ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit for Ford ,Fit for Jaguar


3. Asia Car List: (include Australia)


Japanese car  Need standard obd2 , and release from 2005 years to now

Fit for KIA ,Fit for Isuzu ,Fit for Honda ,Fit for Mitsubishi, Fit for Hyundai  ,Fit for Dacia  ,Fit for Lexus ,Fit for Mazda

Fit for Nissan  ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota


Chinese car Need standard obd2 , and release from 2011 years to now

Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry


4. Russia Car List:


For Ssangyong Actyon , A200 XDI Diesel , from 2007 to 2017 years ; 2.4 Diesel , from 2009 to 2017 years.

For Ssangyong Korando , 2.0 TD Diesel , from 2013 to 2017 years.

For Ssangyong Kyron , 2.0 Diesel , from 2007 to 2017 years.

For Ssangyong Rexton , 2.7 XVT Diesel , 2007 years or 2011 to 2017 years,

For Ssangyong Rodius , 2.7 Diesel , 2007 to 2017 years.

For LADA Niva , 1.7 Gasoline , from 2011 to 2017 years.

For LADA Priora , 1.5 Gasoline , from 2008 to 2017 years.



Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning

   (over 3000 generic code definitions in the database).


2.Clear trouble codes and turn off the MIL ("Check Engine" light)


3.Display current sensor data, including:


  •  Engine RPM

  •  Calculated Load Value

  •  Coolant Temperature

  •  Fuel System Status

  •  Vehicle Speed

  •  Short Term Fuel Trim

  •  Long Term Fuel Trim

  •  Intake Manifold Pressure

  •  Timing Advance

  •  Intake Air Temperature

  •  Air Flow Rate

  •  Absolute Throttle Position

  •  Oxygen sensor voltages/associated short term fuel trims

  •  Fuel System status

  •  Fuel Pressure




Features:

1. Small size, compact structure. Plug and never unplug

2. Stable wireless connection

3. No wires or batteries (adapter is powered by the diagnosis size sockets)

4. Stop communication, wait half an hour, auto sleep

5. Supports most of the OBDII protocols

6. The adapter uses the fastest and most reliable ARM chips




5963745c-5666-44fb-8135-7b31bdd727bf
27d2a2a8-31ae-4cd1-b4da-615ace1be6f9
708bdde6-ae64-47b2-a4a3-8b1209ef1b86
dbef9ce3-2f83-43f3-b78e-542898bc37e9
d9532c01-622b-4de7-bbd8-a8988697b08d
6124eee6-6fc6-43b0-a202-96a3a1cf82ac



Difference
how to use ELM327

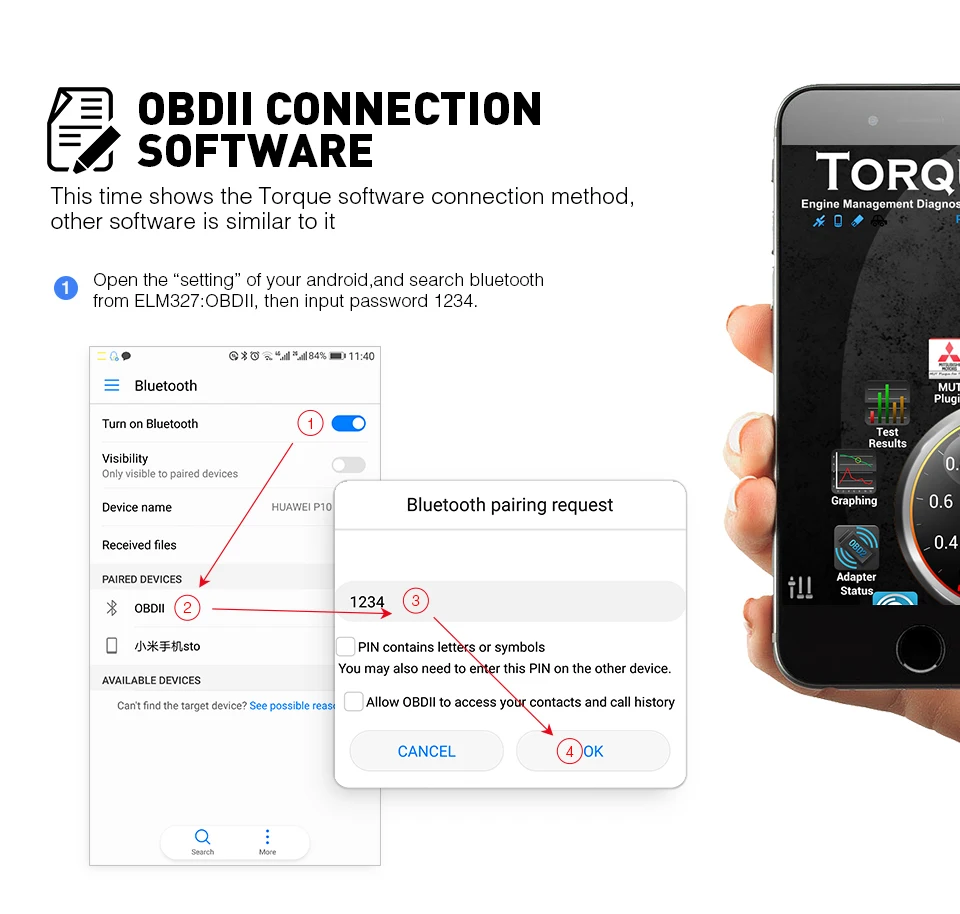

OBD app connect
OBD app connect1
OBD app download
OBDII Connector location
